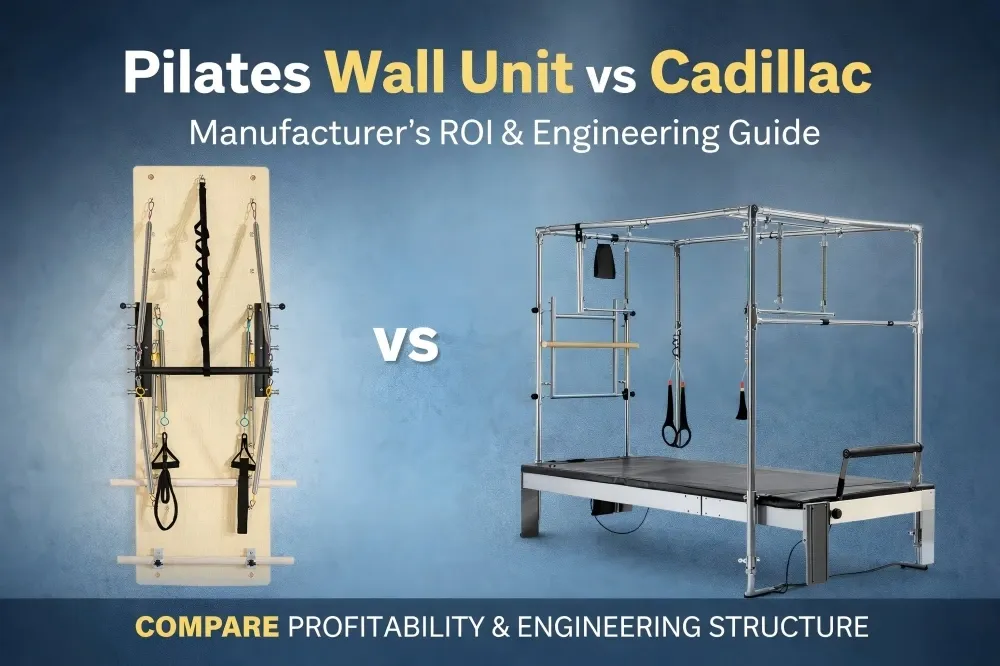

Pilates Wall Unit vs Cadillac: Manufacturer's ROI & Engineering Guide

Factory-direct guide on Pilates Cadillac & Wall Units. Deep-dive into 500kg load testing, CNC precision, and OEM sourcing.

Introduction: Sourcing Beyond the Surface

In the global Pilates equipment market, there is a fundamental distinction between "fitness furniture" and "professional apparatus." For a studio owner, a distributor, or a procurement officer for a global franchise, equipment is not just a tool—it is a long-term capital asset.

When you source directly from a dual-line manufacturer (Solid Maple & Aerospace Aluminum), you are moving beyond aesthetics. You are investing in load cycles, moisture-controlled wood stability, and spring calibration. This guide is designed to provide the technical and commercial clarity needed to choose between the two heavyweights of the Pilates studio: the Trapeze Table (Cadillac) and the Wall Unit.

Chapter 1: The Cadillac – Engineering the "Command Center"

1.1 Structural Load & Dynamic Safety

The Cadillac is the most physically demanding piece of equipment to manufacture. Because it must support "hanging" and "inversion" exercises, the frame must withstand massive leverage forces that a standard reformer never encounters.

Frame Integrity: We utilize high-density structural maple or 6061-T6 aluminum. Our commercial frames are engineered and tested to handle a dynamic load of 500kg.

Reinforced Geometry: In high-frequency studio environments, any "frame sway" ruins the client's sense of safety. Our joints feature reinforced geometry and heavy-duty industrial bolting to ensure the frame remains rigid over thousands of use cycles.

1.2 The Business Case for the Cadillac

The Cadillac is your prestige anchor.

High-Ticket Revenue: It justifies premium rates for 1-on-1 private sessions. Clients recognize the Cadillac as the pinnacle of Pilates training.

Clinical Versatility: Its height and wide surface are non-negotiable for rehabilitation facilities where patients require stable, elevated support for physical therapy.

Load Testing and Failure Analysis: Why 500kg Matters

In our testing lab, we don't just test for static weight; we test for cyclic fatigue. Every Cadillac frame design undergoes a 100,000-cycle stress test under varying tension angles. This simulates 10 years of aggressive commercial use. When we say our frames handle 500kg, we are talking about the Ultimate Tensile Strength (UTS) of the structural joints. For a studio owner, this means zero frame creaking and zero mechanical failure during high-amplitude hanging exercises."

Chapter 2: The Wall Unit – The Engine of Scalable Profitability

2.1 The "Revenue per Square Meter" Rule

As a manufacturer, we often advise studio chains to lead with the Wall Unit. Why? Because floor space is the highest overhead in the wellness industry.

The Footprint: A Cadillac requires roughly $2.5 \times 0.8$ meters of floor space. Our Maple Wall Unit is wall-mounted. When the mat is removed, it occupies zero floor space.

Scalability: In a 60sqm room, you can fit 2 Cadillacs or 10 Wall Units. For group classes, the math is undeniable: 10 paying students generate 5x the revenue of 2 students in the same square footage.

2.2 The Integrated Backboard Advantage

Many low-cost suppliers sell "Towers"—simple metal poles bolted to a wall. We manufacture Wall Units with solid maple backboards.

Vibration Dampening: Solid wood absorbs the micro-vibrations generated by spring recoil. This provides the "grounded" feel essential for elite Pilates.

Structural Life: The backboard acts as a bridge, distributing the 75kg gross weight and spring tension across the wall surface, preventing mounting bolts from loosening over years of high-intensity use.

Chapter 3: Technical Deep-Dive – The Science of Manufacturing

Material Selection: Choosing the Right Frame for Your Environment

As a dual-line manufacturer, we offer both Solid Maple and Aerospace-Grade Aluminum frames for our Wall Units and Cadillacs. Each material serves a specific business strategy and environmental requirement.

Maple Wood (The Classic Choice): Designed for Boutique Studios that prioritize premium aesthetics and a traditional "Zen" atmosphere. Beyond its natural beauty, maple wood is renowned for its superior vibration absorption, providing a grounded and tactile feel that many elite practitioners prefer. Our maple is kiln-dried to a moisture content of 8%–10% to ensure it remains stable in all climates.

Best for: High-end private studios, luxury wellness centers, and classical Pilates environments.

Anodized Aluminum (The Modern Choice): Engineered for High-Traffic Studio Chains and industrial-scale facilities. Utilizing 6061-T6 aerospace-grade alloy, these frames are virtually maintenance-free and resistant to scratches and impact. Aluminum is the superior choice for high-humidity environments (such as coastal regions or tropical climates) where it provides total protection against moisture-related warping or corrosion.

Best for: Large-scale franchises, physical therapy clinics, and studios in humid or non-climate-controlled regions.

3.1 The Anatomy of a High-Performance Spring

The spring is the "engine" of the apparatus. We do not use generic industrial springs. We manufacture them using High-Tensile Music Wire (ASTM A228).

Calibrated Resistance: Every spring is tested for consistency across production batches. This is essential for studio chains—every machine in every location must feel identical.

The 8-Spring Configuration:

2 × Long Green (Light): 14.5 kg

2 × Long Red (Medium): 27.8 kg

2 × Short Green (Light): 19.0 kg

2 × Short Red (Medium): 29.7 kg

Safety Hooks: We use reinforced, swivel-eye bolt hooks, pull-tested to ensure they can withstand double the maximum spring tension without deformation.

3.3 CNC Precision & Interchangeability

Our factory utilizes Standardized CNC (Computer Numerical Control) Machining.

Batch Consistency: Every bolt hole and joint is cut to a tolerance of 0.1mm.

Future-Proofing: This precision allows for 100% parts interchangeability. If a client needs a replacement push-through bar five years from now, the new part will fit perfectly without manual adjustment.

Beyond the Grain: The Chemistry of Wood and Metal Finishing

Most buyers look at the color; we look at the Shore Hardness and VOC emissions. Our maple units are finished with a specialized water-based, non-toxic lacquer that passes stringent European REACH standards. It’s designed to resist the high acidity of human sweat, which typically corrodes cheap oil finishes. For our aluminum line, we use a 15-micron Anodizing process. This isn't just paint—it’s an electrochemical change to the surface of the metal, making it nearly impossible to scratch with spring hooks or rings."

Chapter 4: B2B Sourcing & Supply Chain Support

4.1 OEM & Private Labeling (Brand Identity)

For distributors, the machine should carry your brand, not ours.

Logo Engraving: High-precision laser engraving on the maple backboard or aluminum frame.

Custom Upholstery: Over 30 medical-grade, antibacterial vegan leather colors available to match your studio's branding.

4.2 The "Knock-Down" Design: Saving Your Margin

Shipping is the silent profit-killer.

Packaging Engineering: Our Wall Units feature a "Knock-down" design that reduces shipping volume by 20% compared to pre-assembled units.

The Distributor’s Formula: Calculating Landed Cost and Volume ROI

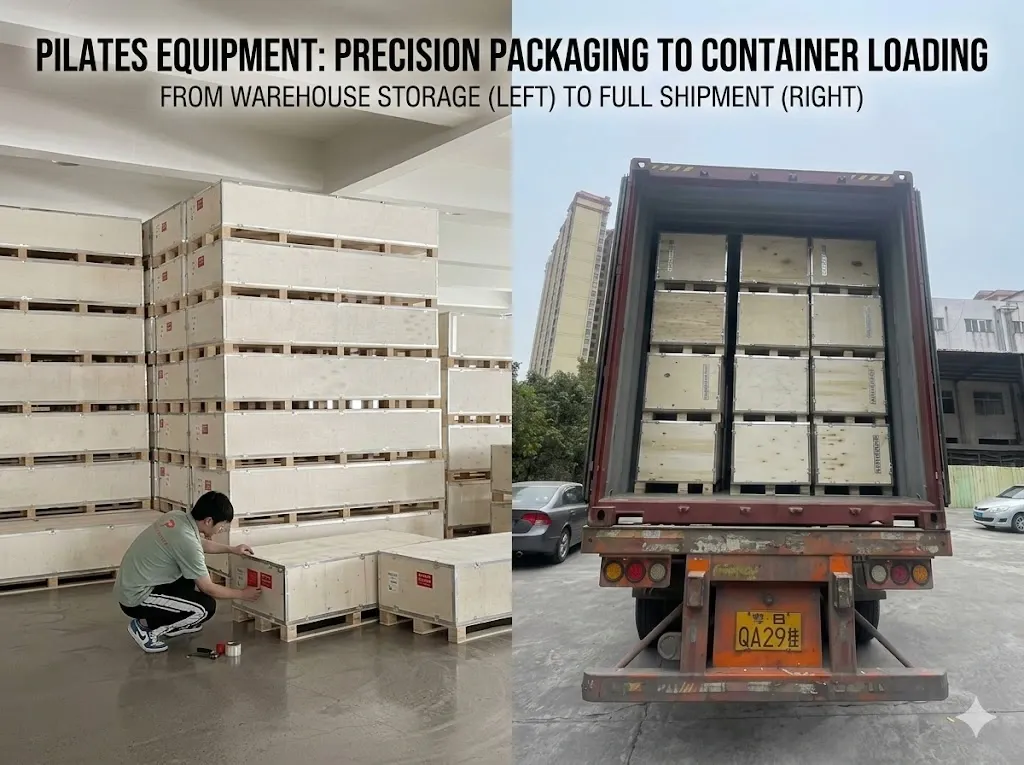

Shipping air is the biggest waste in the Pilates industry. Our engineering team redesigned the Wall Unit backboard and frame to fit into an optimized 'Flat-Pack' configuration. By reducing the box height by just 15cm, we increased the loading capacity of a 40HQ container by 22%. For an international distributor, this directly translates to a $40–$60 saving per unit on ocean freight alone. We provide full Palletization Plans and Loading Diagrams to ensure your warehouse team can offload efficiently with zero transit damage."

Chapter 5: Comparison Matrix for Procurement Officers

Metric	Full Cadillac (Maple/Alu)	Wall Unit (Solid Backboard)
Material	Solid Maple / 6061-T6 Alu	High-Density Solid Maple
Primary Goal	Prestige, Rehab, Private	Volume, Group Class ROI
Weight (Net/Gross)	~120kg / 180kg	45kg / 75kg
Lead Time	15–25 Days (Bulk)	15–25 Days (Bulk)
Space Requirement	Permanent Footprint	Zero Floor Space (Wall Mounted)
Customization	OEM Logo & Upholstery	OEM Logo & Upholstery

"If your studio focuses on clinical rehab in a humid climate, go for the Aluminum Cadillac."

"If you are a high-volume studio in London or NYC with high rent, choose the Maple Wall Unit to maximize headcount."

Chapter 6: Professional Maintenance & Longevity

To protect your capital investment, we recommend a manufacturer-standard maintenance schedule:

Weekly: Wipe down upholstery with non-alcohol based cleaners.

Monthly: Inspect spring "O-rings" and hooks for wear. Check wall mounting bolts.

Quarterly: Lubricate pulley wheels and pivot points.

Bi-Annually: Full spring tension audit to ensure resistance calibration remains within studio standards.

Conclusion: Partnering with the Source

Reliable equipment builds reliable studios. As a direct Pilates equipment manufacturer, our goal is not just to sell a container of machines—it is to ensure that five years from now, your springs are still calibrated, your wood is stable, and your clients are safe.

"When sourcing for a franchise, consider the Total Cost of Ownership (TCO). High-quality maple and anodized aluminum hold their value. A direct-factory unit from us retains approximately 65-70% of its value after 5 years on the secondary market. In contrast, 'fitness-furniture' grade units often have zero resale value due to frame warping and proprietary part failures. Investing in factory-grade machinery is not just a purchase; it’s a secured asset on your balance sheet."

Whether you are anchoring your brand with the Full Cadillac or scaling your revenue with the Maple Wall Unit, partnering directly with the manufacturer ensures total quality control, long-term parts supply, and a scalable production capability that trading companies simply cannot match.
